DISC BLADES
Disc blades assist in performing primary and secondary tillage operations on farms. The larger diameter disc blades cause heavy soil disturbance and chop residue to incorporate it into the soil. Whereas, smaller diameter disc blades smoothen and pulverize the soil for seedbed preparation.
Cultivatus Tools line of concave discs are available in variety of designs and sizes. The disc blades feature plain and notched patterns. The notched patterns are more aggressive with turning the soil. The blades are available in Boron and High Carbon Steel which is carefully selected and heat treated for quality and durability throughout its lifecycle.

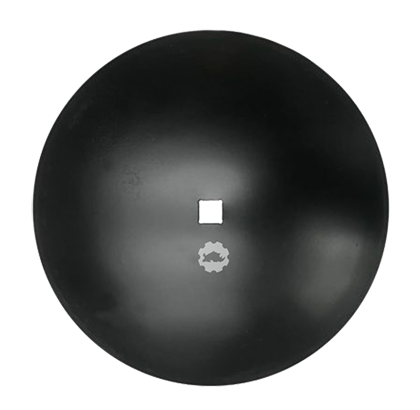

PLAIN

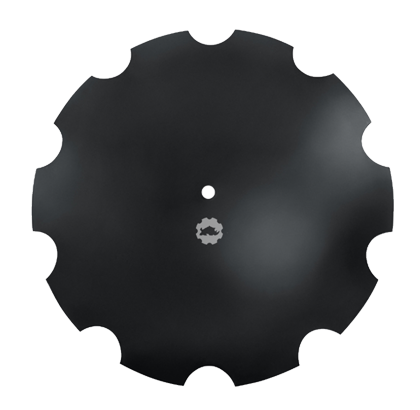

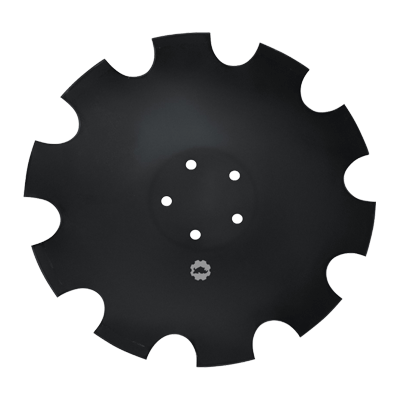

NOTCHED
- Available Styles - Plain & Notched
- Available Diameters - From 10" to 28"
- Available Thicknesses - From 3mm to 10 mm
- Available Concavity - From 10mm to 115mm
PLAIN
NOTCHED
- Available Styles - Plain & Notched
- Available Diameters - From 10" to 28"
- Available Thicknesses - From 3mm to 10 mm
- Available Concavity - From 10mm to 115mm

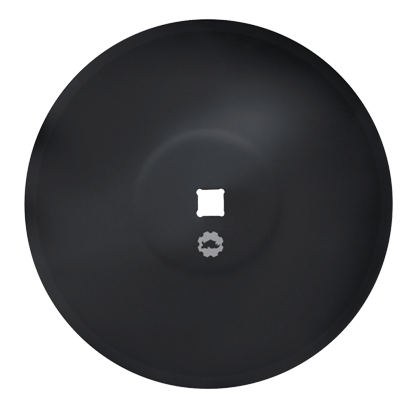

PLAIN

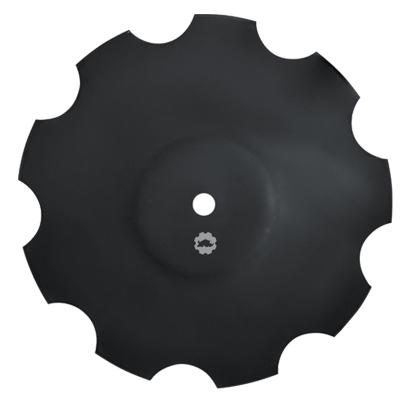

NOTCHED
- Available Styles - Plain & Notched
- Available Diameters - From 10" to 28"
- Available Thicknesses - From 3mm to 10 mm
- Available Concavity - From 10mm to 115mm
COULTER BLADES

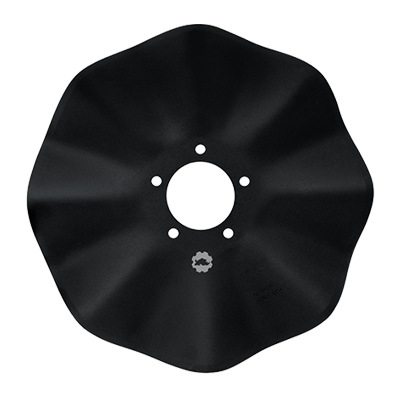

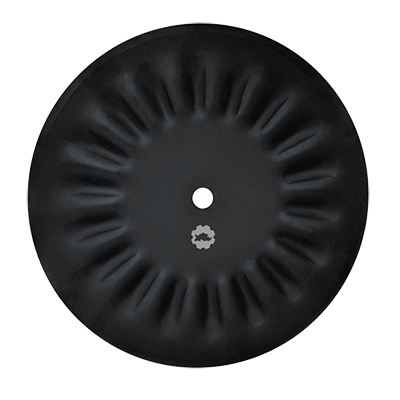

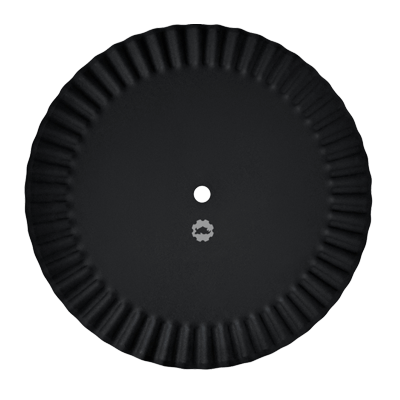

Coulter blades assist with cutting crop residue and seeding applications. Coulter blades provide great soil penetration and cutting ability with minimum soil disturbance. The degree of soil disturbance increases with rippled and wavy coulters.
Cultivatus Tools line of Coulter blades are available in variety of designs and sizes. The blades are available in Boron and High Carbon Steel which is carefully selected and heat treated for quality and durability throughout its lifecycle.

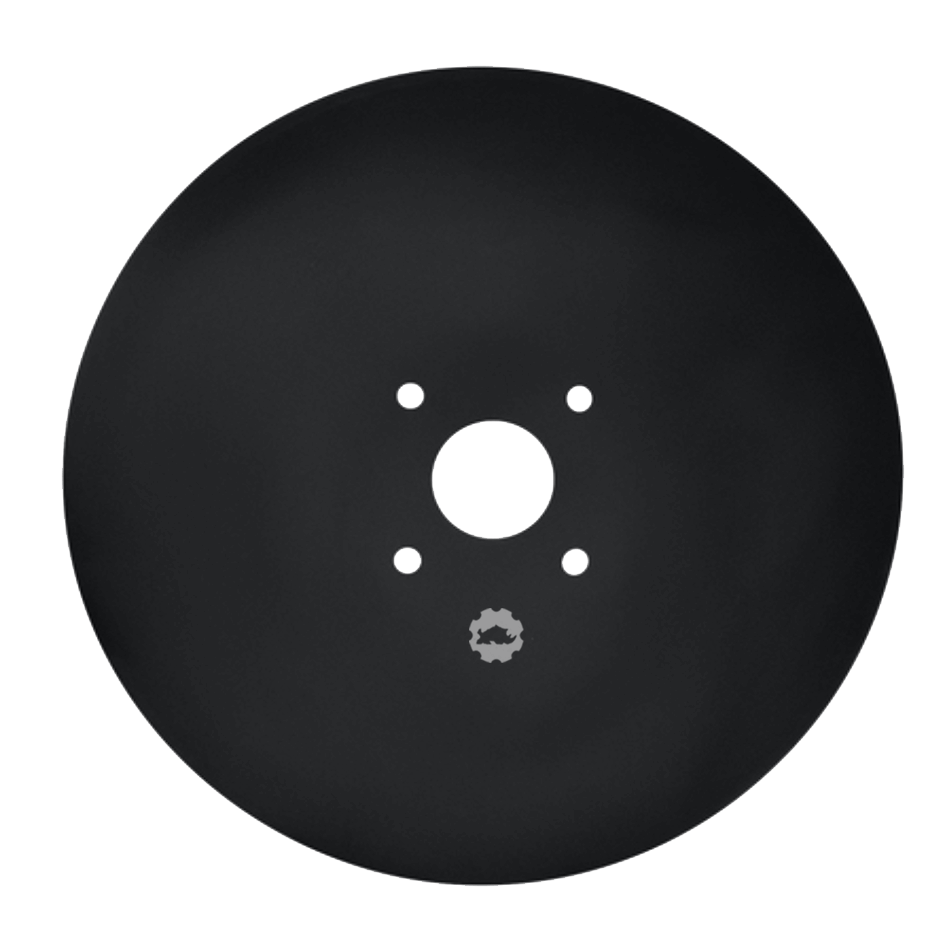

PLAIN

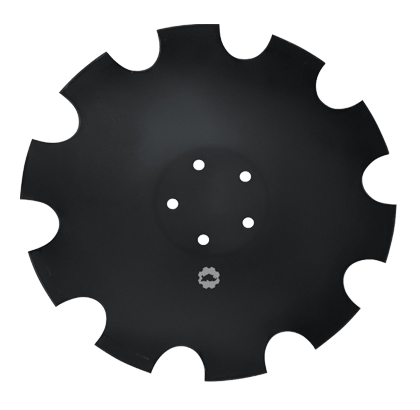

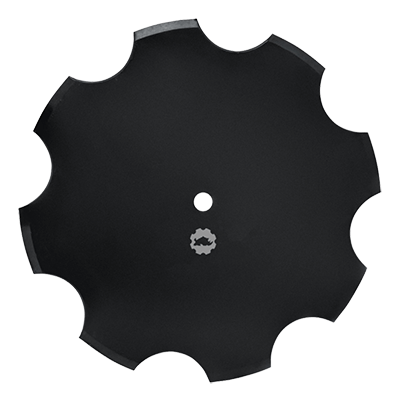

NOTCHED
- Available Styles - Plain & Notched
- Available Diameters - From 10" to 28"
- Available Thicknesses - From 3mm to 10 mm

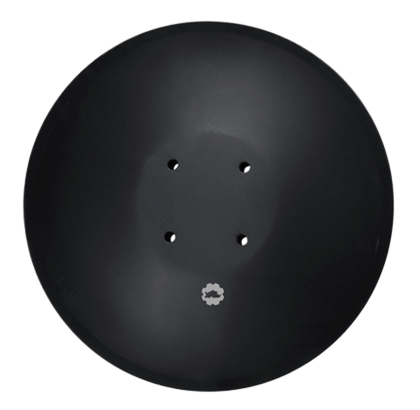

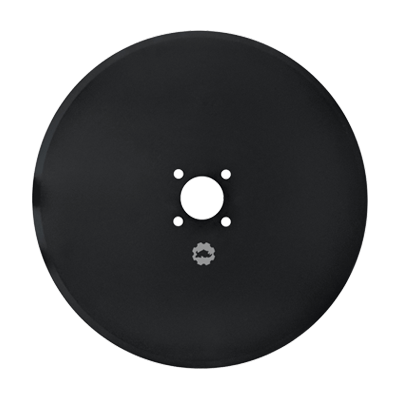

PLAIN
- Available Styles - Plain
- Available Diameters - From 10" to 28"
- Available Thicknesses - From 3mm to 10 mm
PLAIN
- Available Styles - Plain
- Available Diameters - From 10" to 28"
- Available Thicknesses - From 3mm to 10 mm
PLAIN
- Available Styles - Plain
- Available Diameters - From 10" to 28"
- Available Thicknesses - From 3mm to 10 mm

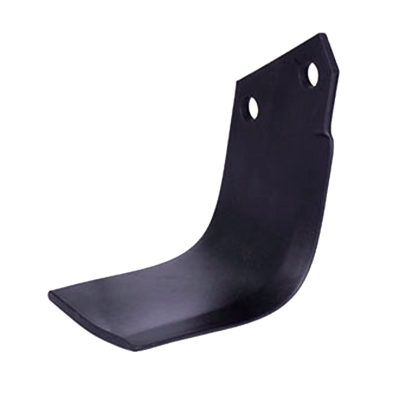

ROTAVATOR BLADES

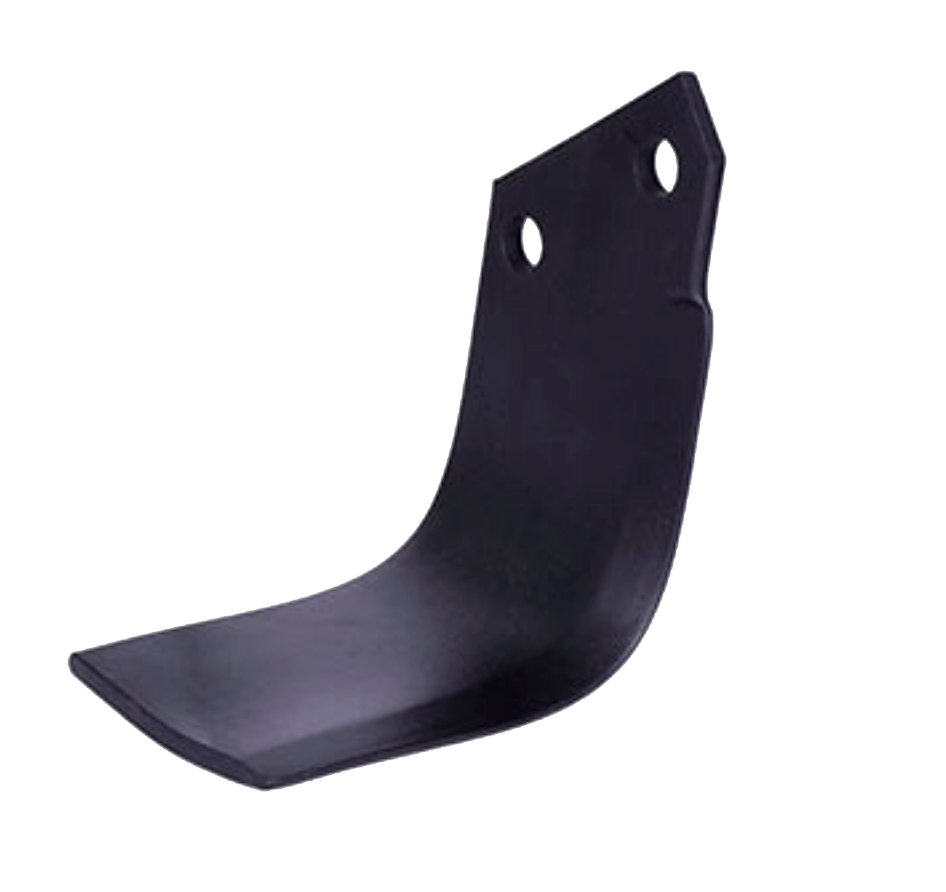

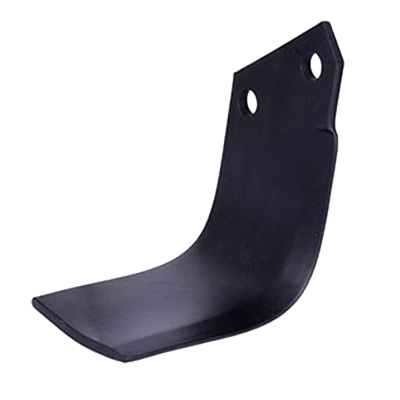

Rotavator blades help perform primary and secondary tillage operations in one stage hence improving efficiency of tillage operations. The blades turn and pulverize the soil for aeration and level the surface to prepare seedbeds. Cultivatus Tools line of Rotavator blades are available in carefully selected Boron Steel and design to reduce wear for longer lasting blades.
| Part Number | Thickness | Width | Hole Size | Hole Distance |
|---|---|---|---|---|
| AS-L-1457 | 7mm | 80mm | 14.5mm | 57mm |
| AS-L-1257 | 7mm | 80mm | 12.5 mm | 57mm |
| AS-L-1157 | 7mm | 80mm | 11.5 mm | 57mm |
| AS-L-1446 | 7mm | 80mm | 14.5 mm | 46 mm |

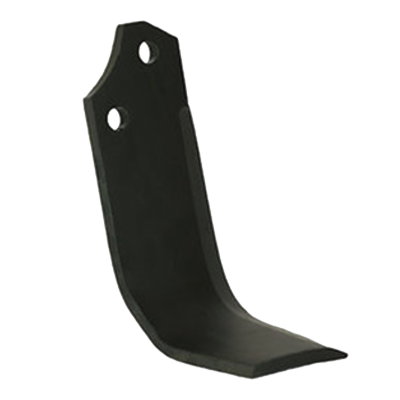

| Part Number | Thickness | Width | Hole Size | Hole Distance |
|---|---|---|---|---|
| AS-Z-1444 | 8mm | 80mm | 14.5mm | 57mm |
| AS-Z-1446 | 8mm | 80mm | 12.5 mm | 57mm |
| AS-Z-1244 | 8mm | 80mm | 11.5 mm | 57mm |
| AS-Z-1446 | 8mm | 80mm | 14.5 mm | 46 mm |

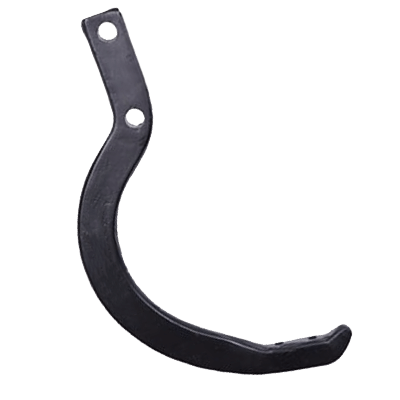

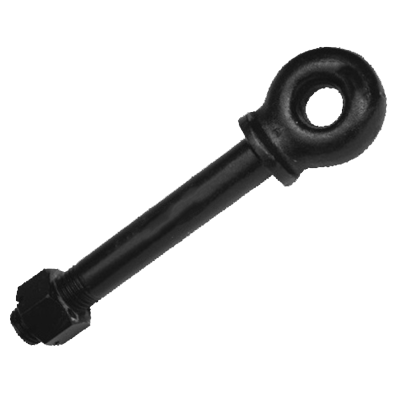

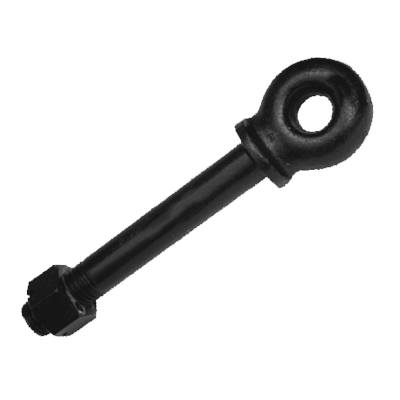

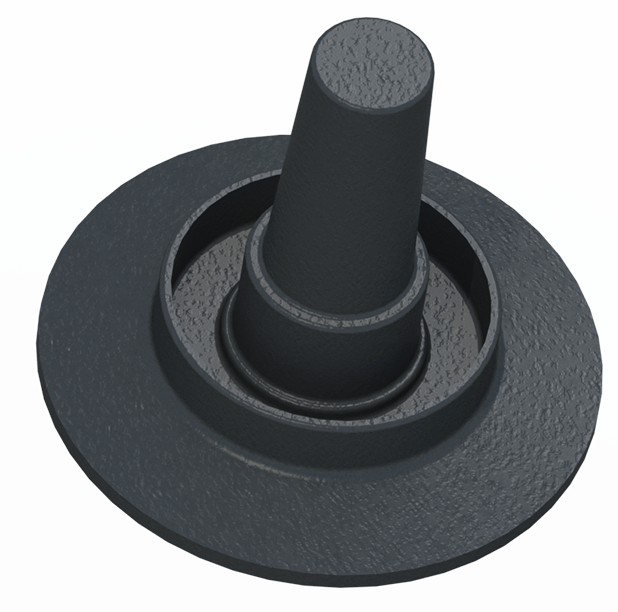

FORGED ITEMS
- Thickness: 0.75 to 1.5 inches / 19.05 to 38.1 mm
- Curved Length: 23 to 25 inches and 28 inches/ 584.2 to 635 mm and 711.2 mm
- Forging Weight: 4 to 9 kg
- Length: 7 to 24 inches/ 177.8 to 609.6 mm
- Diameter: 32mm to 63 mm/ 1.26 to 2.48 inches

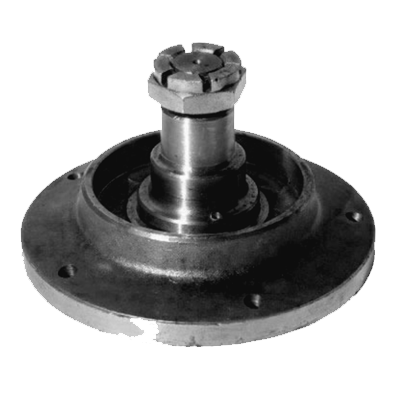

- Hub Diameter: 10 inches/ 254 mm
- Forging Weight: 8.5-11 kg
